6,10, 35kV BB-EL series vacuum switches

   BB-EL-12 type vacuum switches of average voltage switchgears are designed for the reception and distribution of three-phase AC 50Hz, with rated operating voltage 7.2 to 12 kV in power distribution networks.

   Outdoor vacuum circuit breakers, type BB-EL-35, are designed for switching electrical circuits in normal and emergency modes in three-phase AC networks with a voltage of 35 kV.



Disconnectors РДЗ (RDZ) voltage classes 35, 110, 150, 220, 330 kV

   High-voltage disconnectors for outdoor installation of a horizontal rotary type are designed to create a visible disconnecting gap in the disconnected position in accordance with regulatory requirements, as well as grounding disconnected sections using earthing switches, which are integral with the disconnector. Disconnectors are manufactured in single-pole and three-pole versions (with one leading pole) without grounding knives, with one or two grounding knives. Our plant produces the following РДЗ (RD(Z) disconnectors:

РД(З)-35/1000 УХЛ1, РД(З)-110/1000 УХЛ1, РД(З)-150/1250 УХЛ1, РД(З)-220/1000 УХЛ1, РД(З)-330 II/3150 УХЛ1.

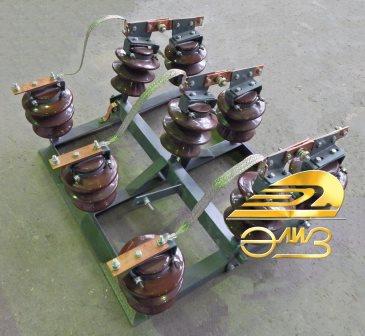

Disconnectors РЛН(RLN) series

   Disconnectors of the РЛН(RLN) series are designed to turn on and off under voltage sections of a high voltage electrical circuit in the absence of load current in three-phase alternating current networks with a frequency of 50 Hz.

   Manufactured for domestic and export deliveries. Disconnectors are designed to turn on and off under voltage sections of the high voltage electrical circuit in the absence of load current in alternating current networks with a frequency of 50 Hz.

Disconnectors of the РЛНЗ(RLNZ) series have grounding blades, when turned on, the line section connected to the disconnectors from the side of the grounding blades is grounded, which is necessary to ensure the safety of people working on the line. Climatic version - У; Placement category - 1 in accordance with ГОСT 15150 and ГОСT 15543. Our plant produces the following РЛН(RLN) disconnectors:

РЛН-10/400(630) У1, РЛНЗ-10/400(630) У1.



РВ, РВЗ type high-voltage connector

   The connector is an electrical device, designed to create a visible gap in three-phase AC 50 Hz circuits of voltage 6 kV and 10 kV at absence of load current in the line.
   The connector allows activation and deactivation of no-load currents of transformers of own needs up to 1.0 A at 6 kV and 0.7 A at 10 kV.



Polymeric bushing insulators, type ИНППэл

Polymeric bushing insulators, type ИНПП-эл are designed for use as low-voltage outlets for power transformers ТМ, ТМГ and the similar ones, in power range 25 to 1600 kVA. The insulators are produced in «УХЛ» performance, accomodation category 1 as per ГОСТ 15150.
Working position - any.



Polymeric bushing insulators, type ИПТэл-10/250 УХЛ1

Polymeric bushing insulators, non-armored, are designed for removable, HV transformer inlets and for power transformers, up to 10kV voltage class.
The insulators are made in «УХЛ» performance, accomodation category 1 as per ГОСТ 15150.
Working position - any.

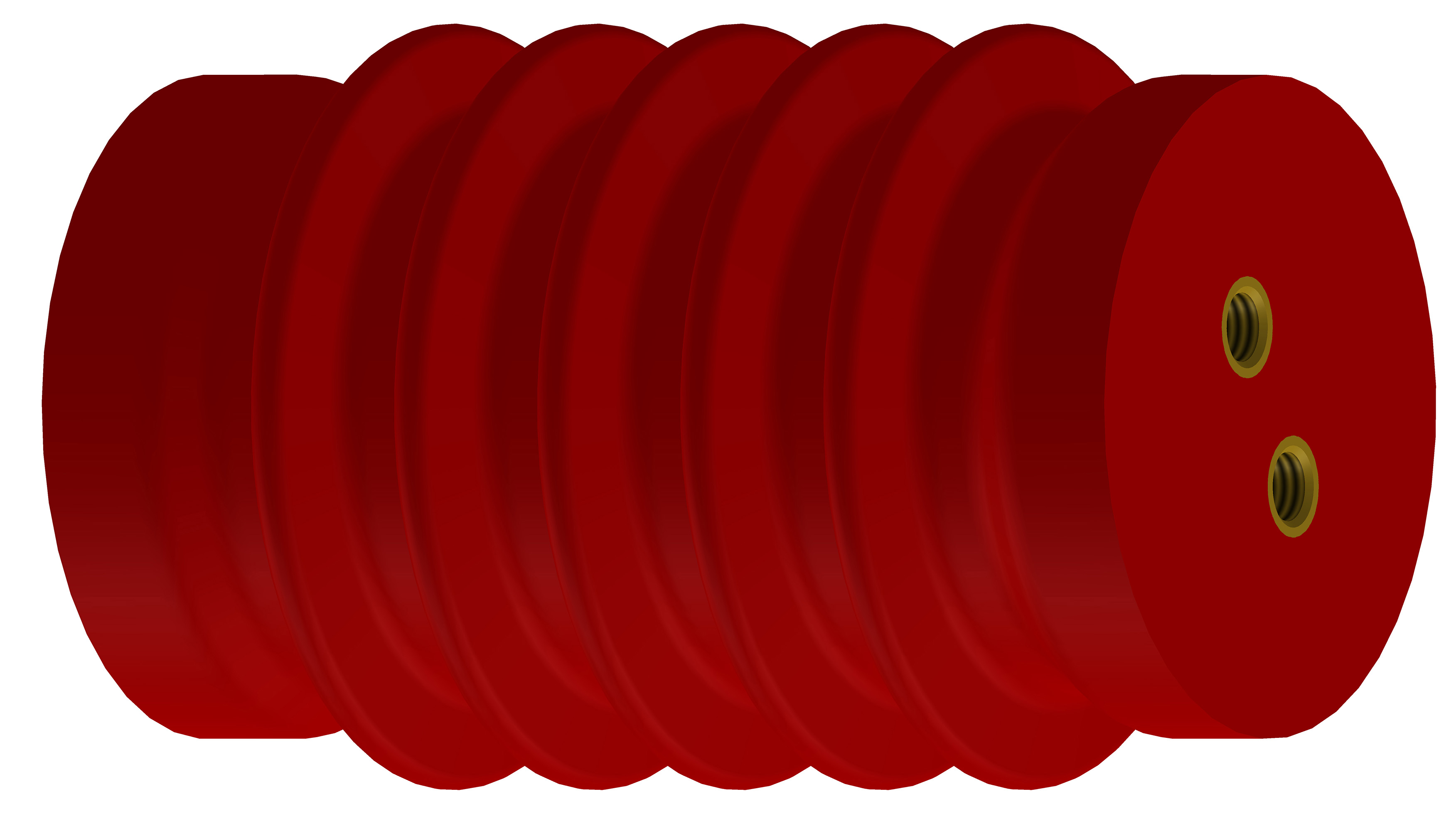

Polymeric support insulators, type ИОЛэл-10(120)-8 УХЛ2 1х16-2х10(23), ИОЛэл-10(120)-5 УХЛ2 1х12-2х8(18)

Polymeric support insulators ase designed for insulation of switchgears (КРУ) elements from high-voltage current-carrying bus, for voltage class up to 10kV.
Insulators are made by performance "УХЛ", allocation category 2 according to ГОСТ 15150.
Working position - any.



Polymeric support insulators, type ИОРэл-20(160)-7,5 УХЛ 2 1х24

Polymeric support insulators ase designed for insulation of reactors elements from high-voltage current-carrying elements, for voltage class up to 20kV.

Insulators are made by performance "УХЛ", allocation category 2 according to ГОСТ 15150.
Working position - any.
